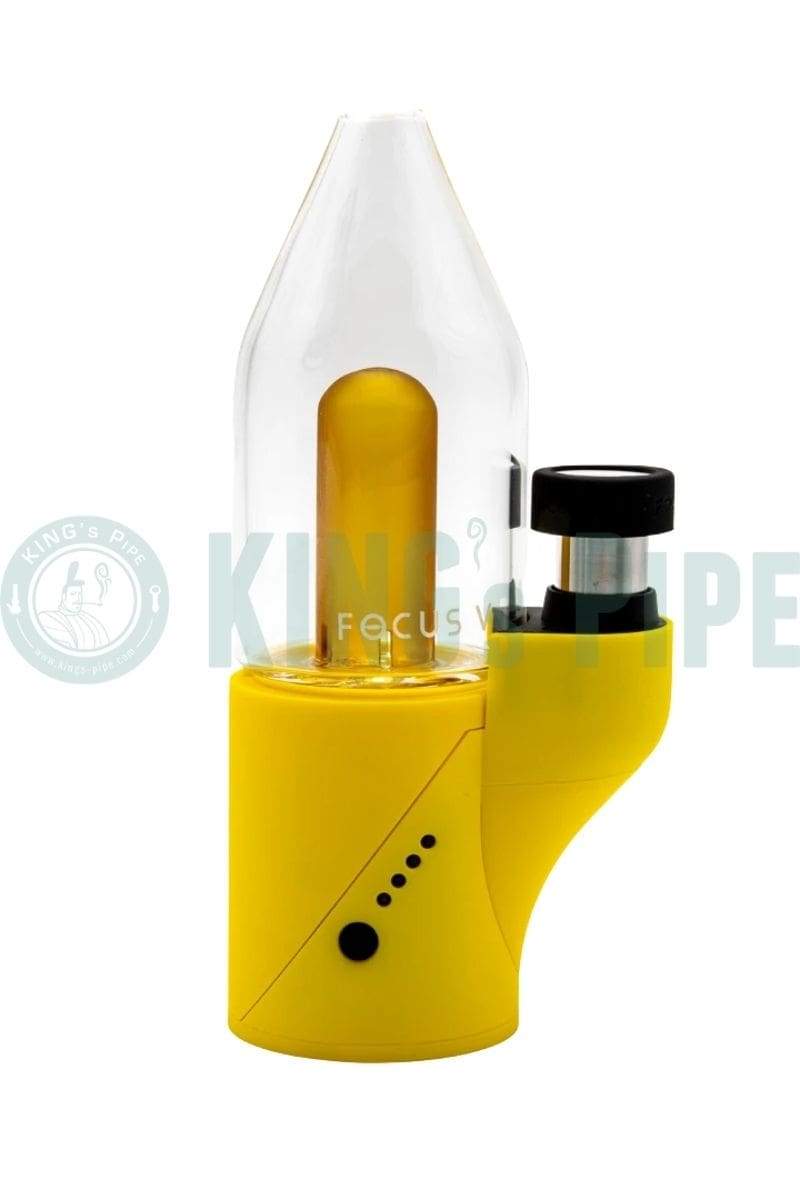

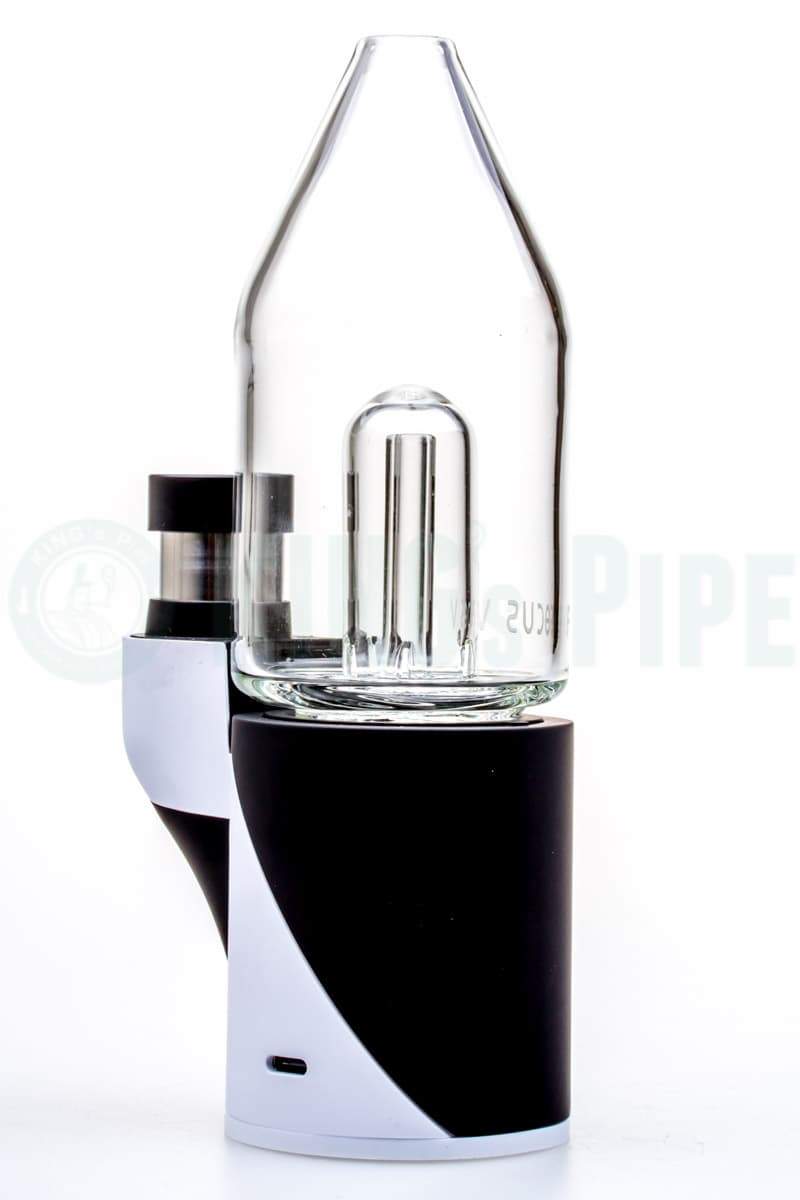

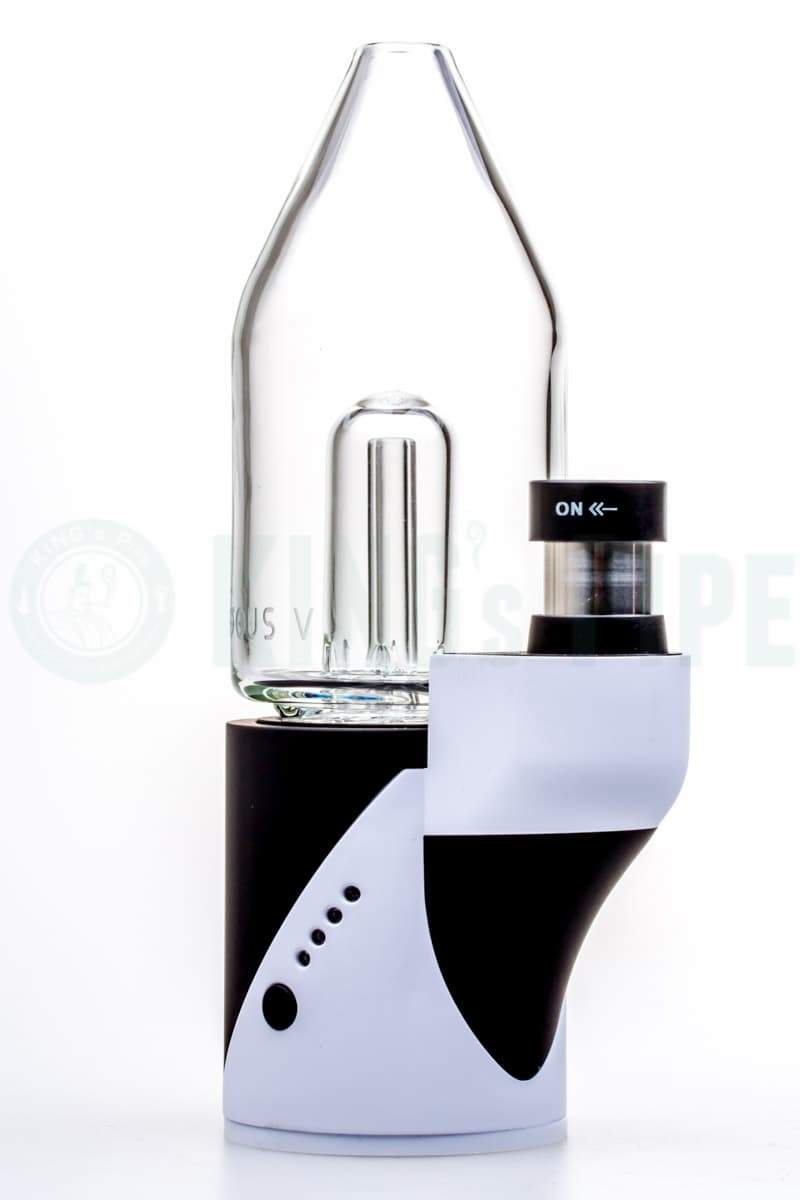

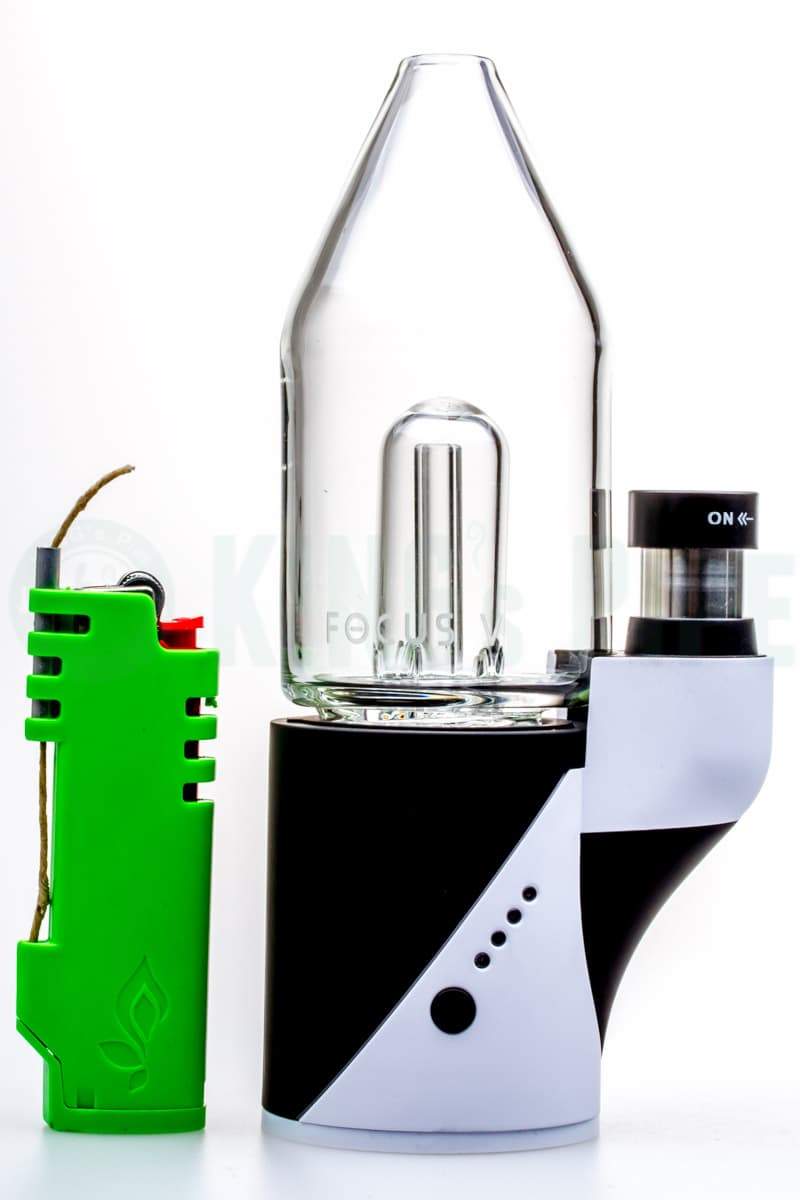

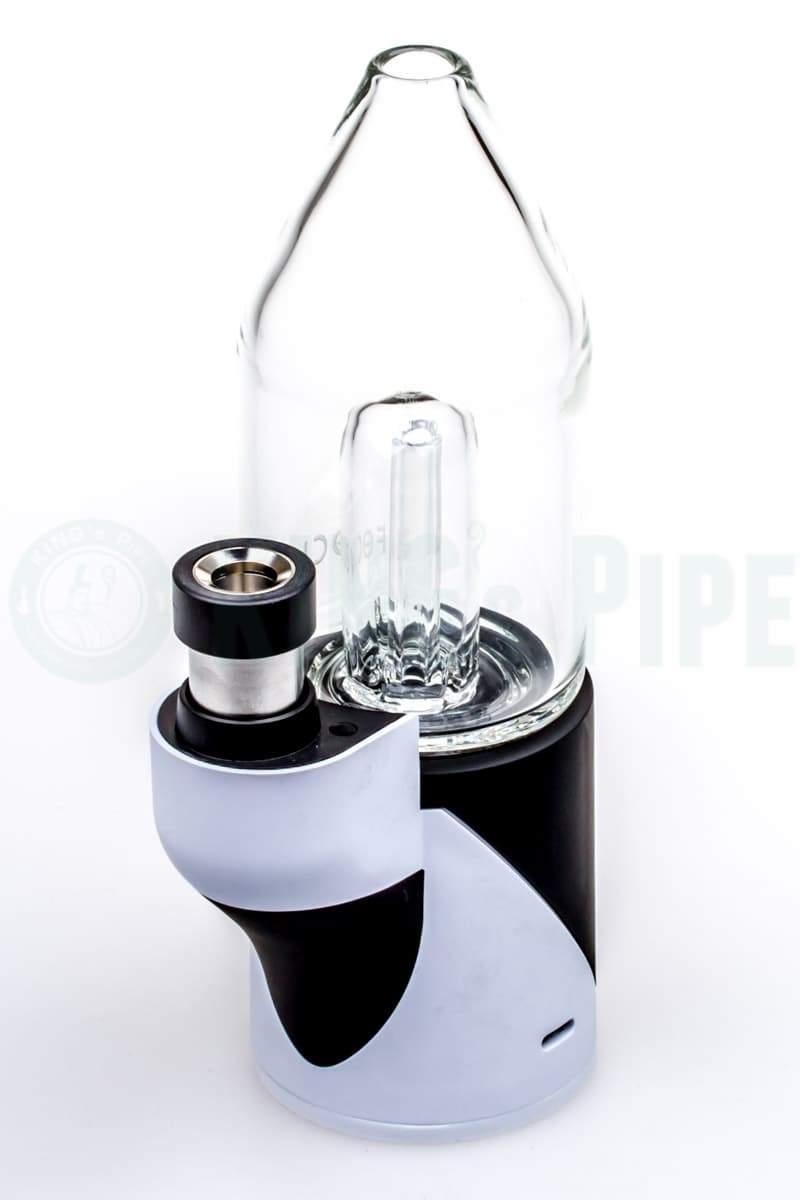

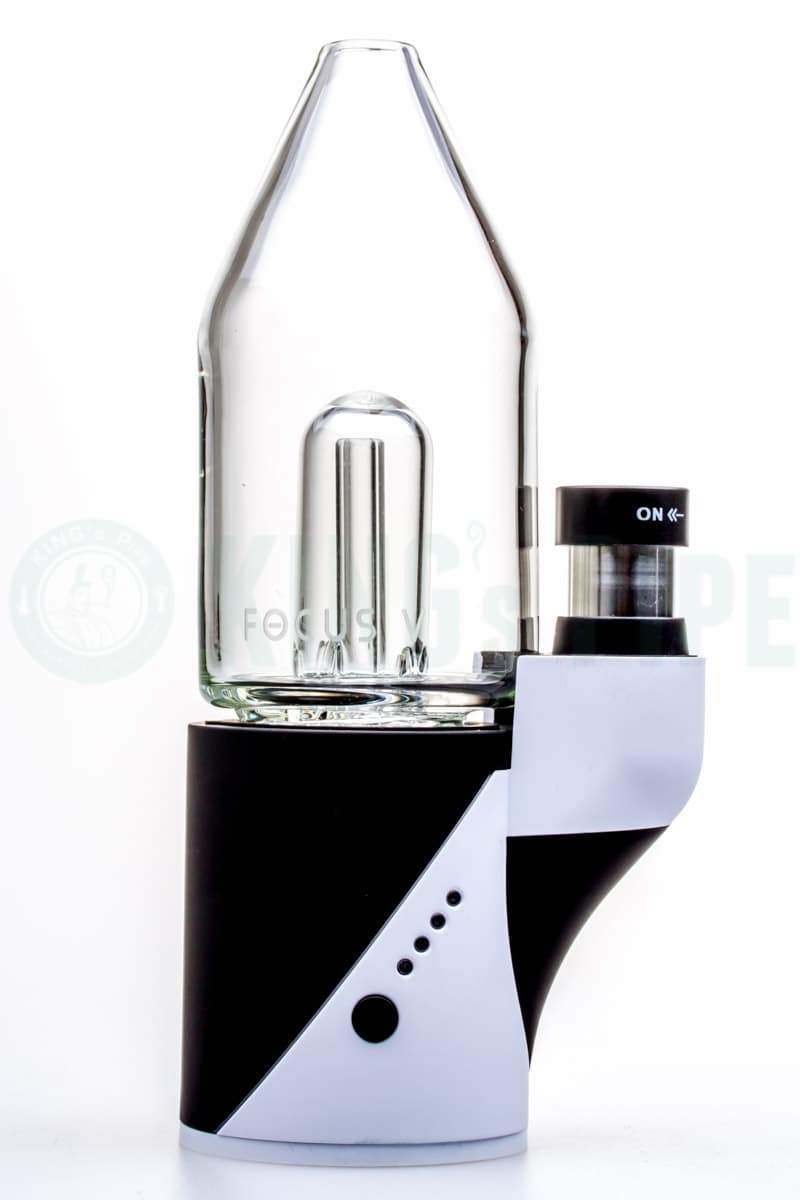

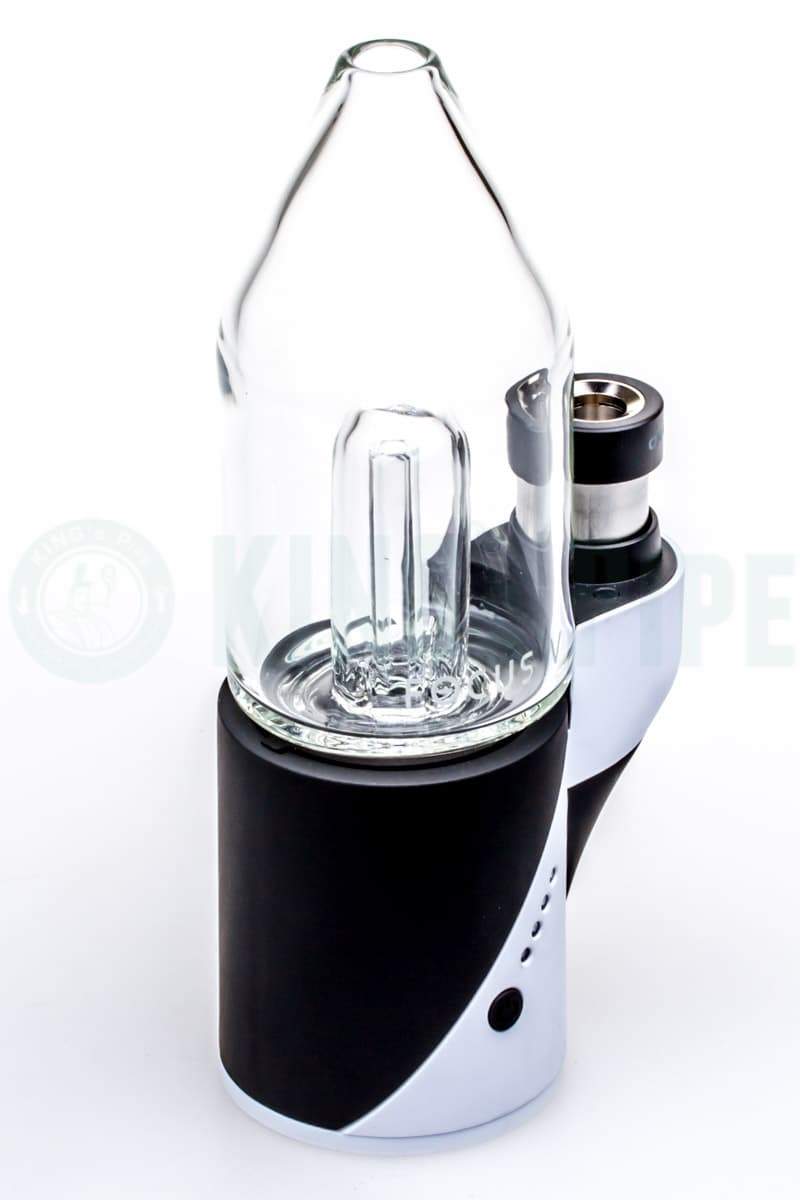

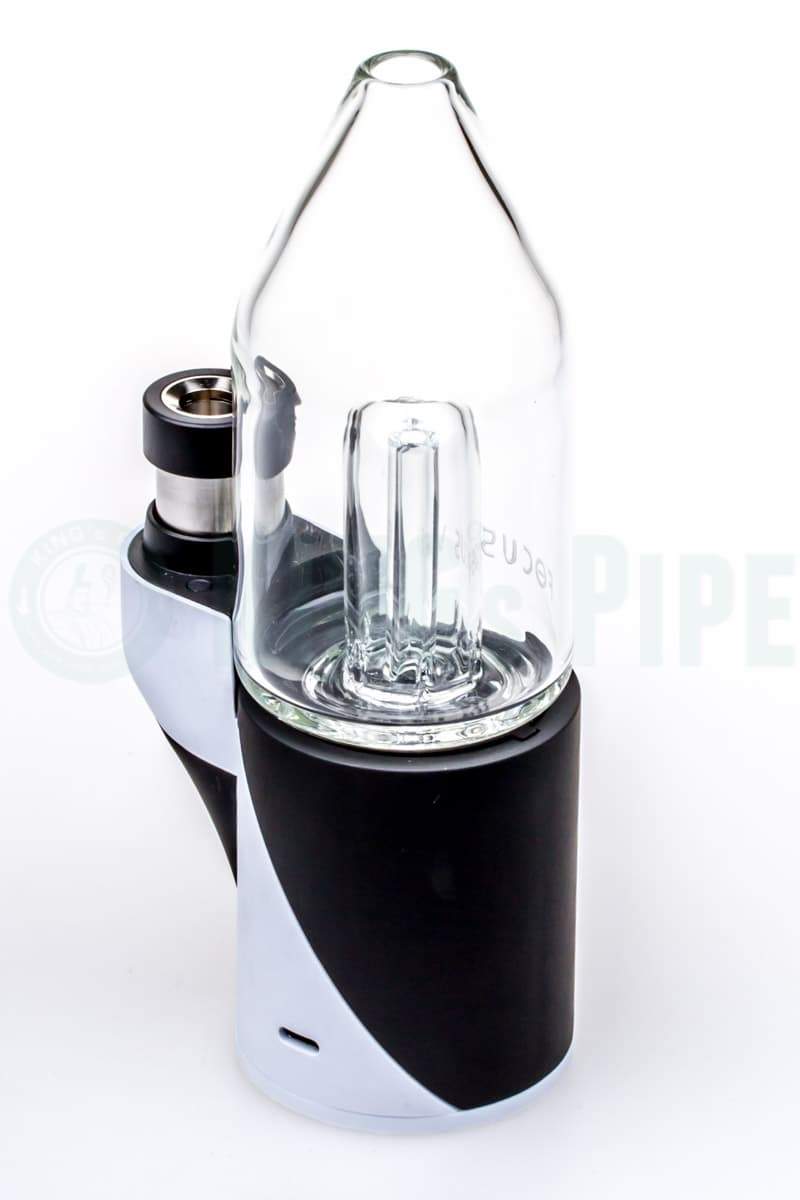

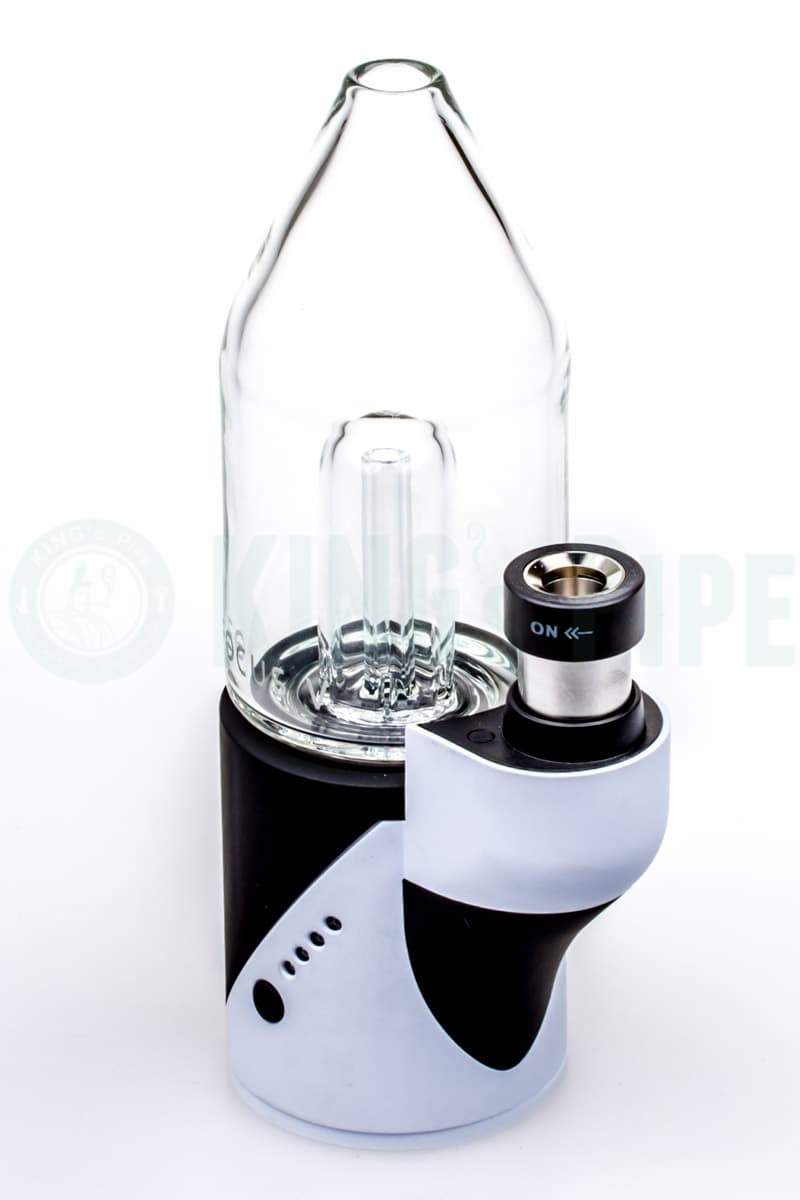

Focus V Carta Electric Dab Rig

by: Focus V



$20 OFF on Orders $130+ with Code KP20
15% OFF Orders $30+ w/ Code "HOTKP15"

Color: Laser Edition Yellow
Original Carta
Helios CARTA - Limited Edition
Laser Edition Green
Laser Edition Blue
Laser Edition Pink
Laser Edition Orange
Laser Edition Yellow

$40 OFF Discount Code for Focus V Carta: CARTA

Focus V CARTA e-Rig Introduction Video

Main Features

  • Portable Electric Dab Rig
  • V2 Version!
  • 2 in 1 Electric Vaporizer
  • Removable Dual 18350 Batteries
  • Herb Attachments (Dry Herb Chamber is not Included)
  • Single Button Operation
  • 4 Preset Buttons (600 F to 940 F)
  • Haptic Feedback

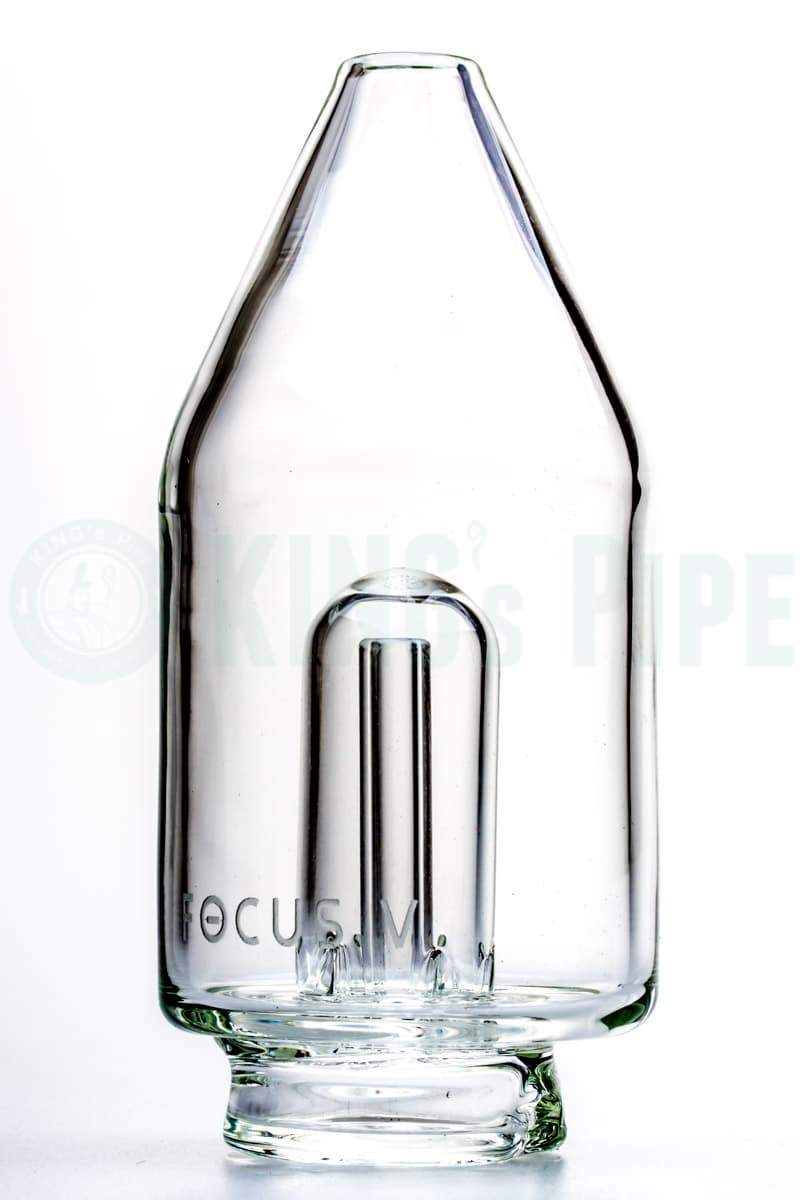

  • Borosilicate Glass Mouthpiece
  • Bluetooth App (Released on 4/20)
  • USB-C Charging Ports


Dimensions: Approx. 8'' in Height
Weight: Approx. 1lb (17oz)
Temperature Range:From 600F to 940F
Vaporizer Compatibility: Concentrates / Dry Herbs
Heat Up Time: Just 5 to 10 seconds
Warranty: 1 Year Limited Manufacturer Warranty / Limited 90 Days Warranty on Atomizer
Manufacturer: Focus V Products

What's in the Package

  • The Focus V Carta Dab Rig
  • Borosilicate Glass Carb Cap
  • Titanium/Quartz Buckets
  • Wax Chamber
  • USB-C Charging Cable (* Use only this Cable to Charge the Unit)
  • 18350 Batteries

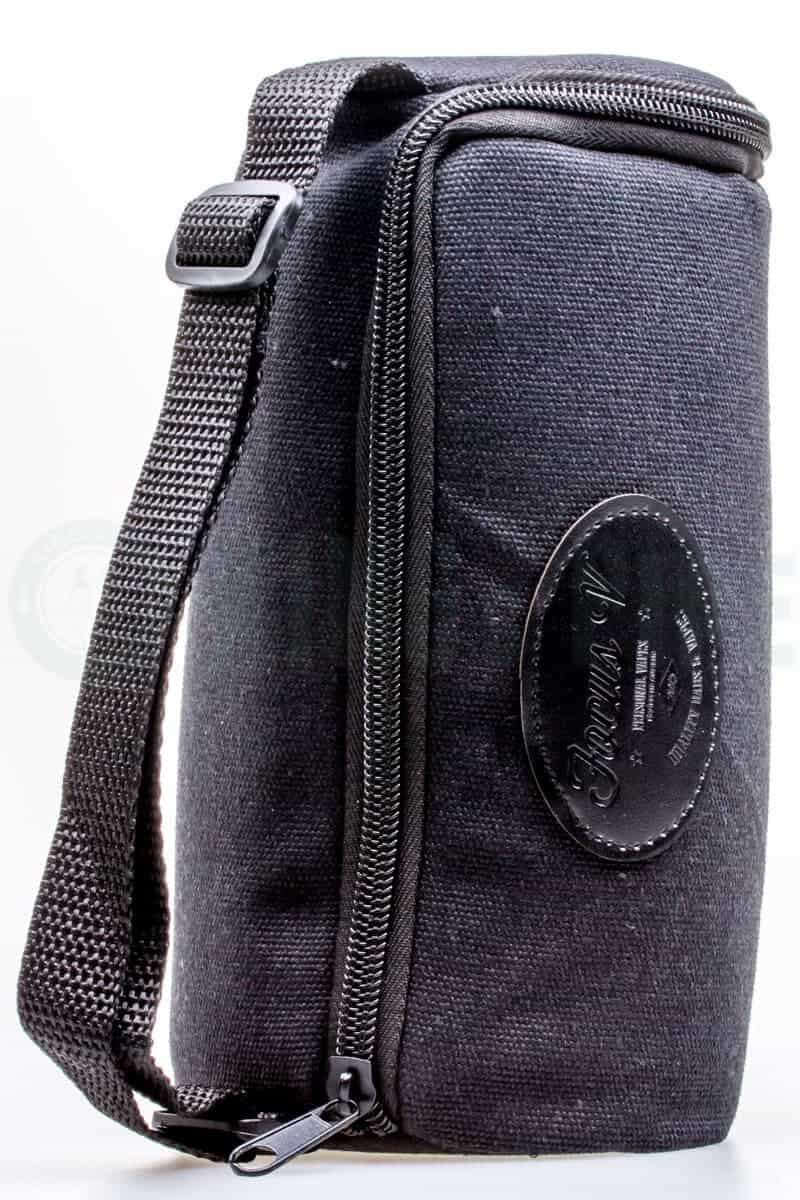

  • Carrying Case
  • Cleaning Kit
  • Mini Silicone Container

Product Description

The Focus V Carta V2 is an innovative portable Electric Dab Rig for both wax and dry herbs (a dry herb chamber atomizer is not included but we sell it separately). This 2-in-1 electric smart rig is only 8 inches in height and approximately 1lb in weight, so it's easy to use and carry. The advanced quartz/titanium bucket of this portable vaporizer doesn't get dirty easily, so you don't have to clean it often. Unlike other portable desktop rigs or electric vape rigs, the Focus V Carta vape rig uses a removable battery, so if you have 2 batteries, you can replace them anytime you want.

The Focus V Carta e-Rig has 4 preset heat settings, but one of the coolest modern features of this electric portable rig is that you can control the temperatures easily on your phone connected to the Bluetooth app that Focus V released on 4/20/19. The price is much cheaper than the Puffco Peak, and KING's Pipe Online Headshop always provides Free Shipping on U.S. orders. Grab your new ergonomic design Carta Portable Vape Rig by Focus V today and enhance your vaping experience!

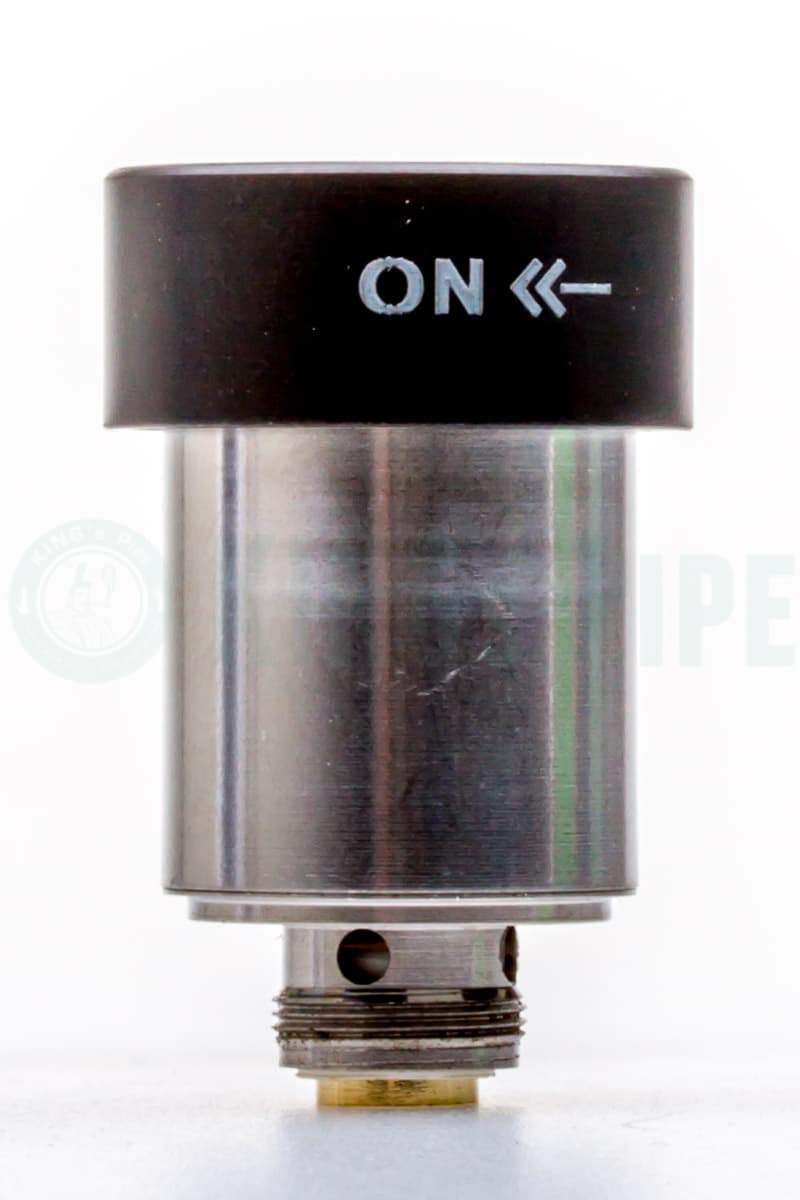

Clean the atomizer with a rubbing alcohol pad. When you see a lot of wax build-up on the atomizer where you twist in, the Carta desktop vaporizer doesn't recognize that the atomizer is in and doesn't heat up. After you clean it, it probably heats up again. The key is to keep the atomizer clean!

Check if the ceramic plate or the wire in the atomizer is damaged. Some of our customers have reported to us that if you tighten the atomizer too hard, the ceramic in the atomizer might get damaged. If it's damaged, you have to replace it. The atomizer is under the manufacturer's warranty for 1 month. Or use the Atomizer Repair Kit by Focus V which lets you repair your damaged atomizer 2 times

How to Clean the Carta Vaporizer V2

Suggested by Focus V

  • Clean the air path and glass with iso and a Q-tip / pipe cleaner
  • Clean the atomizer with a Q-tip and iso. Lightly brush the walls and bucket

Deep Clean Method

  1. Remove the glass and dump the water. Remove the bucket from the atomizer as well. (Exposing just the ceramic disc)
  2. Reattach the glass and turn the unit on to level 3 or 4
  3. Draw from the glass and this will help pull out any excess oil in the air path
  4. Clean the silicone base and the glass top
  5. Dry all the parts and assemble them together. Now, you can have a fresh dab with Carta Focus V dab rig

WARNING - Don’t put the Atomizer directly into the iso because it will damage the heating element

The Focus V Carta Rig Accessories

The Carta Vape Rig Manual

How to Use

  • 5 Clicks to Turn On/OFF
  • 1 Click to Change Temperature Settings
  • 1 Click to Reactivate Heating from Standby
  • 1 Click to Activate Temperature Selection (In Activation mode, holding down the button will cancel the heat up but keep the unit in Standby Mode)

Preset Temperature Settings

  • Low Temp - 500F / 260C
  • Mid Temp - 630F / 332C
  • High Temp - 770F / 410C
  • Very Hi Temp - 842F / 450C

LED Light Signs

  • Blinking White - Start-Up
  • Blinking Blue - Heating Up
  • Solid Green - Ready to Use
  • Blinking Red - Low Battery

Battery Life / Charging

  • 1 Solid Red Light - 25%
  • 2 Sold Red Light - 50%
  • 3 Solid Red Light - 75%
  • 4 Solid Red Light - 100%

Carta Dab Rig Instruction Manual

Focus V Carta Vape Rig Manual 1
Focus V Carta Rig Manual 2


The Carta Apps

NEW Carta iOS App Install Guide

Check our blog about how to install the Carta Bluetooth App

1. Download and Install the Carta Browser App on your iPhone

Carta iOS App

2. Open the App and type "www.focusvcarta.com" in the browser section at the top and click enter. * You must put www. as well.

focus v carta browser iOS App install guide

Now you are ready to use the Carta iOS App!

How to Use the Carta iOS App (Easy!)

1. Turn on Bluetooth on your iPhone. Turn on your Carta device.

2. Open the Carta App. Click PRESS TO CONNECT, and you will see your Carta ID, so select it and click PRESS TO CONNECT.

Carta iOS App to Connect

3. You will have the screen below. Select the following

  • HERB or WAX
  • TIME
How to Use the Carta iOS App

4. Click START SESSION. You are ready to dab or take a hit!

Ready to use the Carta iOS App

The updated new Focus V Carta iOS app is much easier to install and use on an iPhone. The old app had a lot of bugs and glitches. I personally don't remember how many times I had to reinstall the old app to use the Carta E-rig. So far, there is no problem at all with the new Carta iOS app. With the new app, it's easy to switch between WAX and dry herb and you can have more temperature and time settings. I personally prefer 590F temperature for Wax and concentrates. For dry herbs, I usually set up to MAX because I want to see smoke when I take a hit. What is your preferred temperature setting? Leave it in the comment area below and share it with us!

Carta LED Display Troubleshooting Guide

Read the Focus V Carta Troubleshooting Guide on our Blong Post

Focus V Carta LED Display Troubleshooting Guide
